Eventuri RHD Turbo Inlet for AUDI RS3 / TTRS GEN 2

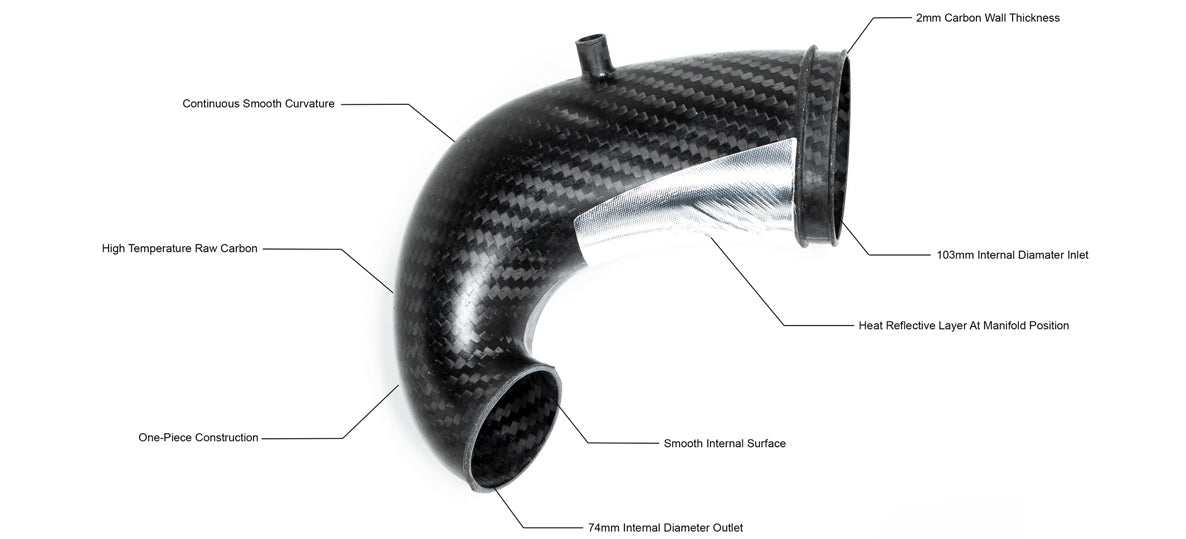

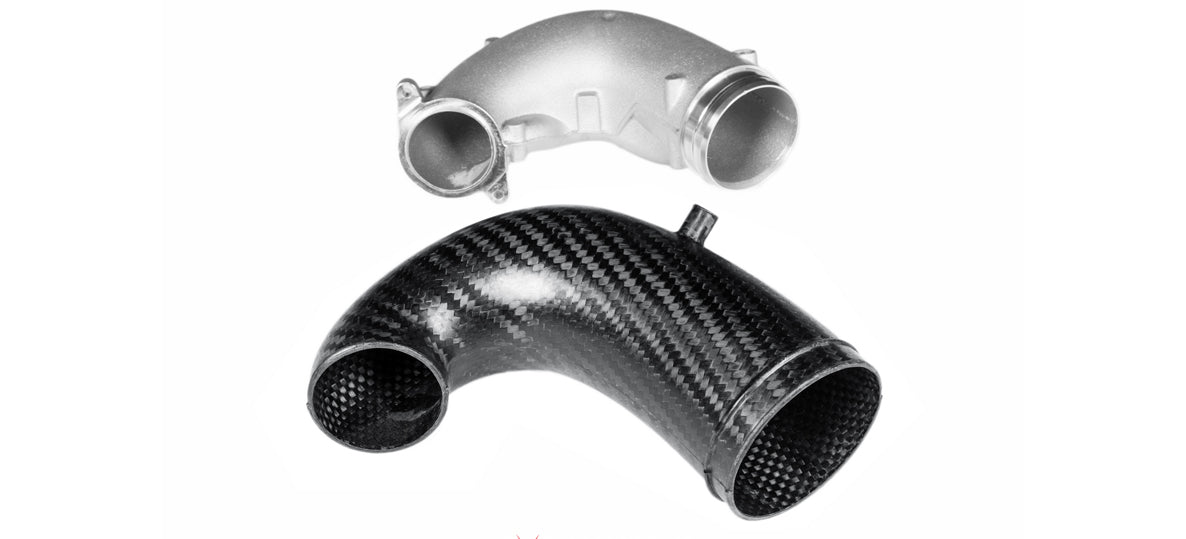

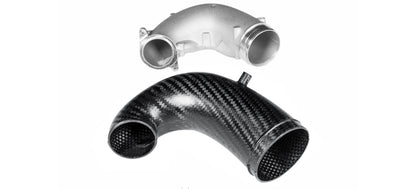

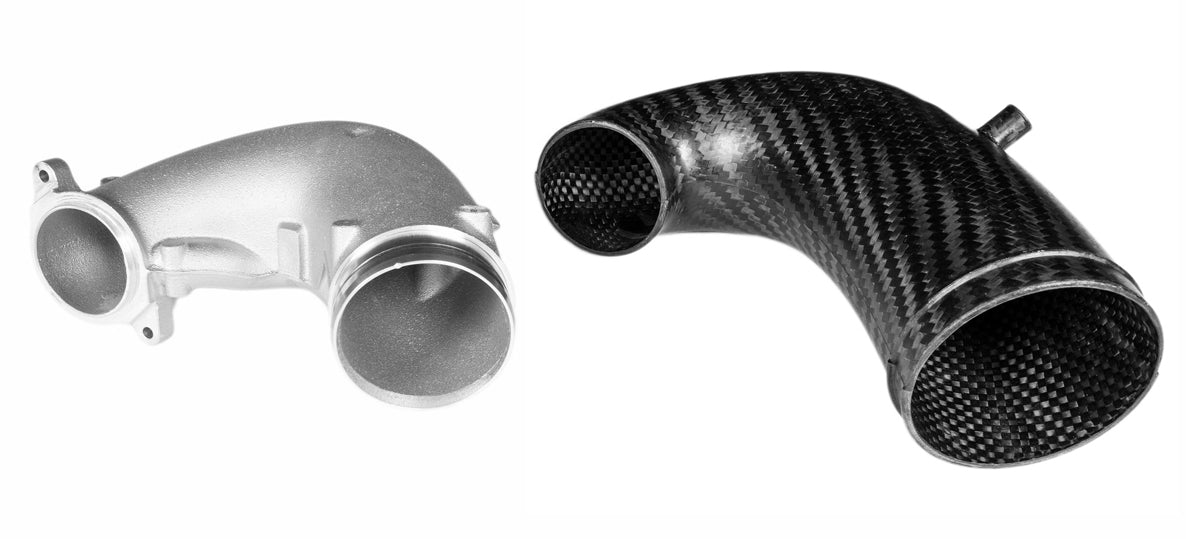

Our Turbo Inlet provides a smooth flow path from the 103mm diameter inlet to the 74mm outlet to the turbo flange. We designed the shape with a continuous curvature and maximised the internal volume without affecting the airflow negatively. The inlet is finished in raw carbon so has no clear coat - which would not be able to withstand the heat generated from the turbo and exhaust manifold. The carbon construction allows us to keep the inside flow surface smooth which helps with reducing the surface friction and in turn allows airflow to move easier. We ensure strength and rigidity by maintaining a 2mm wall thickness throughout the part. Finally for added protection there is a heat reflective layer applied where the tube crosses the exhaust manifold. This reduces the radiant heat absorbed by the tube. The advantage of using carbon fiber over the traditionally used cast aluminium is mainly down to the thermal conductivity and the ability to keep the inside smooth. The table below summarises the advantages.

Performance Gain (RS3 with Hybrid Turbo): 14-20hp, 30-35ft-lb
Flow Rate increase at 24"³ H2O : 42% increase over stock (Using Stock Flange)

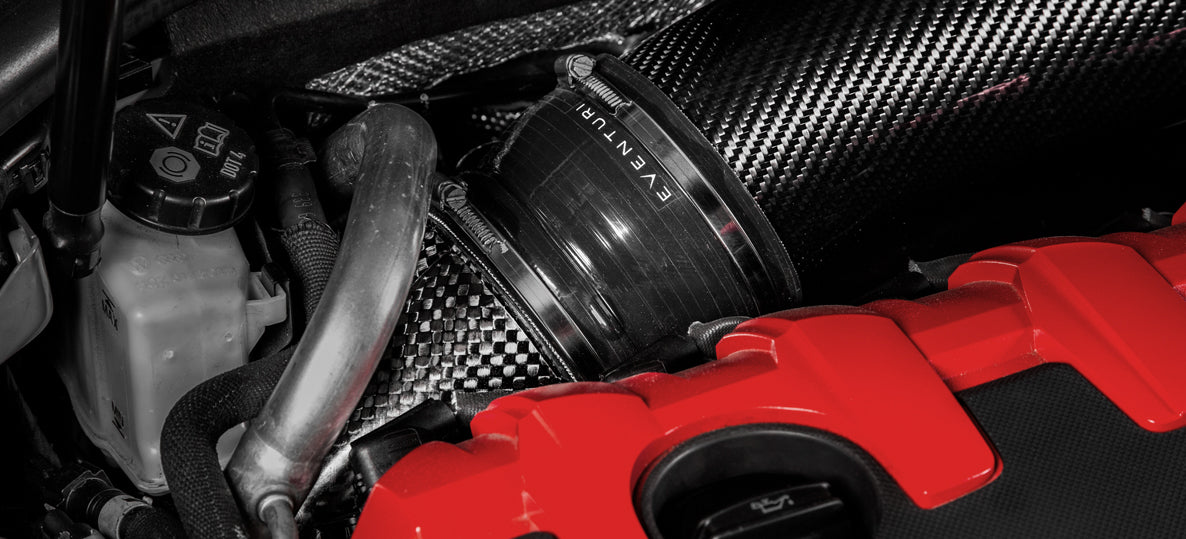

Fitment for RS3 8V Gen 2 and TTRS 8S Left and Right hand drive. Finished in raw carbon " no clearcoat.

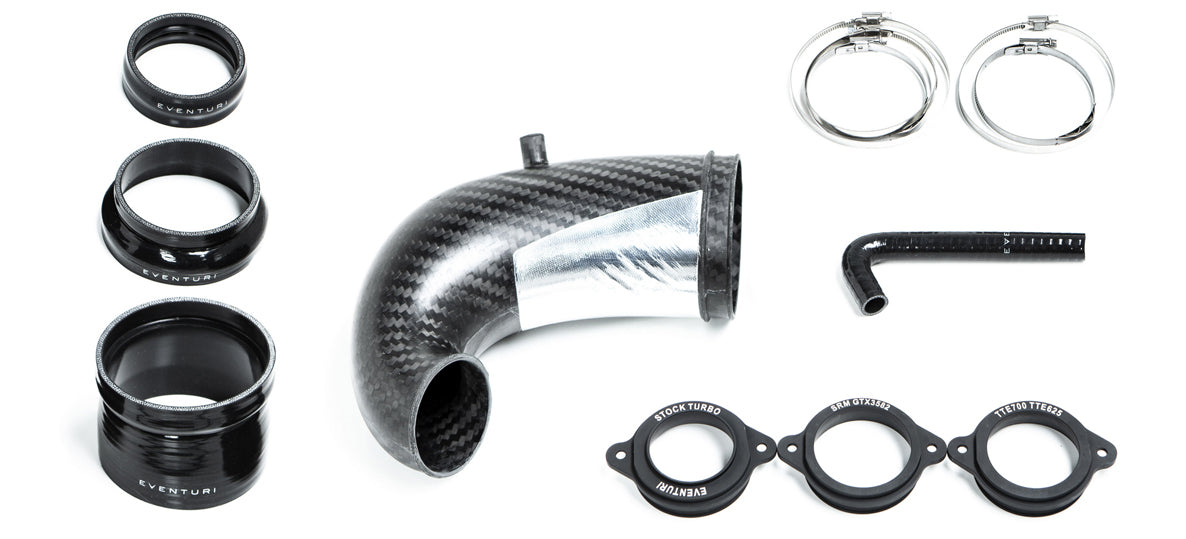

Optional Turbo flanges available for popular hybrid turbos.
